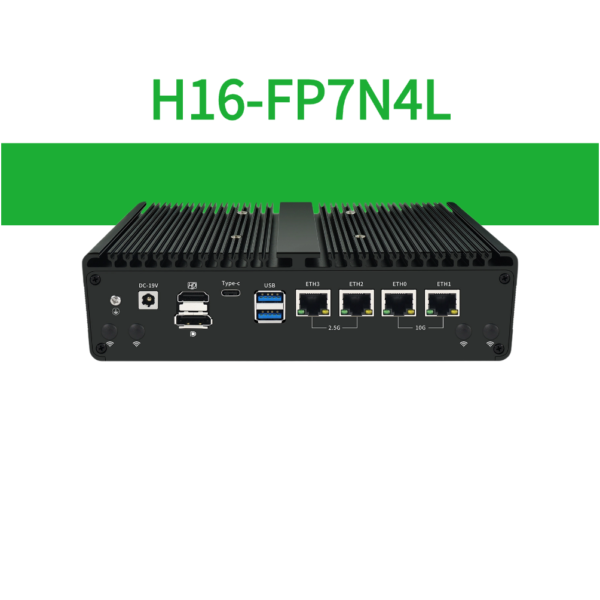

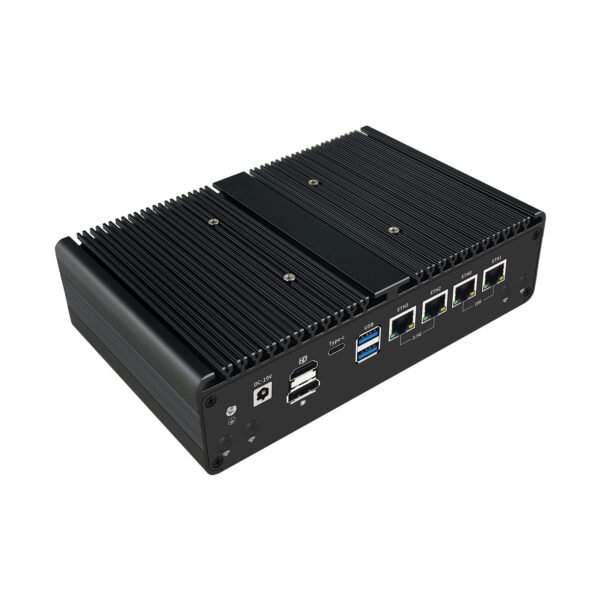

H16-FP7N4L

The H16-FP7N4L is a high-performance compact embedded system built on the AMD Ryzen 7000 / 8000 Series platform. It integrates hybrid 2.5GbE and 10GbE networking, supports dual-channel DDR5 memory, and offers four all-flash storage interfaces with rich expansion—all within a fanless, compact chassis. Designed for enterprise, professional studio, and research environments that demand high performance, absolute silence, and space-efficient deployment, it delivers powerful computing in a truly silent form.

Main Features:

• Peak Performance, Released in Silence: Powered by AMD Ryzen 7000 / 8000 Series processors built on the advanced Zen 4 architecture, it delivers true desktop-class single-core and multi-core performance. It effortlessly handles virtualization, real-time analytics, AI inference, and high-load network processing.
  The efficient fanless passive cooling design, relying on a precision-engineered all-aluminum chassis and thermal structure, enables completely silent operation—eliminating mechanical failure points and noise interference. It is ideal for deployment in environments where absolute silence is essential.
• Hybrid High-Speed Networking, Ready for the Future: Integrates 2x 10GbE ports and 2x 2.5GbE ports in a forward-looking hybrid configuration. The 10GbE ports meet high-speed demands for core storage access and server interconnects, while the 2.5GbE ports perfectly support mainstream high-performance client devices. This combination delivers exceptional bandwidth and flexible network topology for high-speed routing, network isolation, NAS systems, and virtualization platforms.
• Quad All-Flash Storage for Extreme Performance: Equipped with 4x M.2 NVMe SSD slots, supporting high-performance RAID configurations. Users can flexibly deploy them as system drives, cache layers, or large-capacity storage pools—achieving storage I/O performance far beyond traditional SATA arrays and fully unlocking data potential.
• Cutting-Edge Interfaces, Limitless Expansion: Features Type-C ports supporting ultra-high-speed data transfer, video output, and Power Delivery (PD). An integrated OCuLink interface exposes PCIe 4.0 x4 lanes, enabling flexible connection to high-performance GPUs, 10GbE+ network adapters, or data acquisition cards—significantly extending system capabilities and lifecycle. Additional M.2 Key-E/Key-B slots, along with SIM and TF card slots, provide comprehensive support for Wi-Fi 6E/7 and 5G cellular connectivity.
• Ultra-Compact, Professional Deployment: Its compact, lightweight design allows discreet placement on desktops, in racks, or embedded within professional equipment. Network ports, USB, and power interfaces are positioned on the front for convenient cabling, while expansion and maintenance interfaces are placed at the rear for clean, organized peripheral integration.
