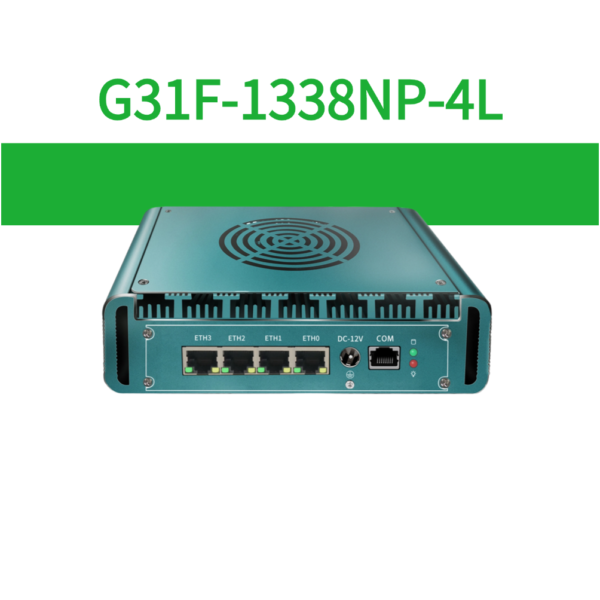

G31F-1338NP-4L

G31F-1338NP-4L is a compact industrial control host optimized for edge network communication and lightweight industrial control. Equipped with Intel® Celeron N5105 quad-core processor, integrated 4×2.5GbE high-speed network ports and dual-channel memory architecture, it meets the core needs of small and medium-sized enterprise network equipment, light industrial automation and edge computing nodes with high cost performance, low power consumption and multi-interface expansion capabilities.

Core highlights

Equipped with Celeron N5105 (4 cores/4 threads, 2.9GHz turbo frequency), integrated Intel UHD Graphics 24EU core graphics, supports 4K video decoding, and meets lightweight AI reasoning and visual tasks.

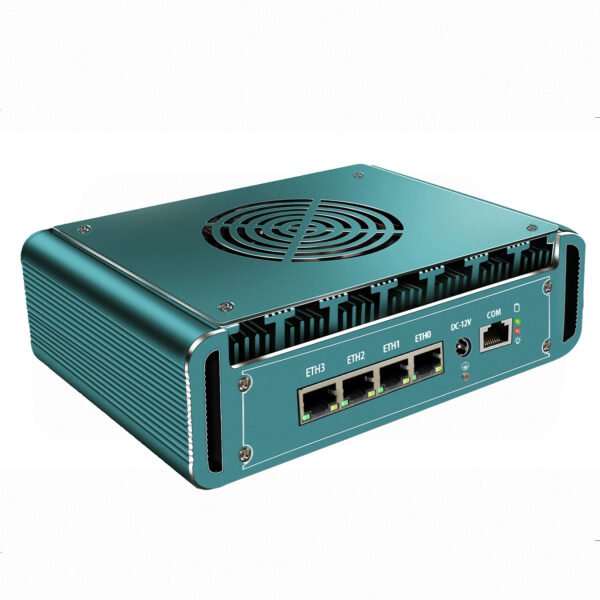

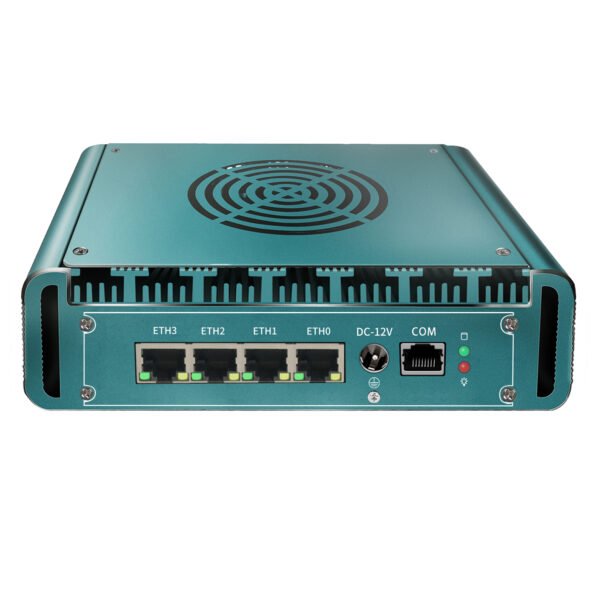

4 2.5GbE adaptive network ports, support port aggregation, VLAN division and network redundancy, can be deployed as a multi-WAN port router, firewall or small network switch, and the transmission bandwidth is increased by 150% compared to Gigabit.
Dual-channel DDR4 memory improves data throughput efficiency, and multi-task processing capabilities are increased by 30% compared to single channel.
Full-stack network management function, supports PXE diskless boot, Wake-on-LAN remote wake-up, and is suitable for centralized operation and maintenance scenarios.
Hardware-level protection, supports watchdog timer (Watchdog) to automatically reset the downed system; power-off auto-start (Auto Power-On) ensures continuous service in unattended scenarios.
