Network Routing and Security
The 4-port 2.5GbE provides high-speed network aggregation and load balancing, making it suitable for installing OpenWRT or pfSense, building a home/small office firewall or VPN server, and the fanless design ensures quiet operation.
Edge Computing and IoT Gateway
The onboard SIM card slot and reserved antenna holes support Cellular/Wireless/BT integration. M.2 CNVi and mPCIe expansion slots facilitate the addition of wireless modules, making it suitable for industrial sites, smart cities, or vehicle monitoring, enabling data collection and real-time transmission.
Small NAS storage system
Expandable storage capacity through M.2 SSD and SATA interfaces, along with Wake-up on LAN (WOL) functionality for remote wake-up and data backup, makes it ideal for small and medium-sized business file sharing or home media servers. The smart fan ensures long-term stable operation.
Embedded Multimedia Box
With integrated DP/HD display ports and Intel UHD Graphics, it supports 4K HD output and features an automatic power-on resume function, making it ideal for digital signage systems in retail environments or public spaces. Its compact chassis allows for easy installation.
Industrial Automation and Development
Rich I/O interfaces and expansion slots support sensor and peripheral connectivity, making it ideal for factory equipment, medical instruments, or prototyping, ensuring reliable performance in space-constrained and high-load scenarios.

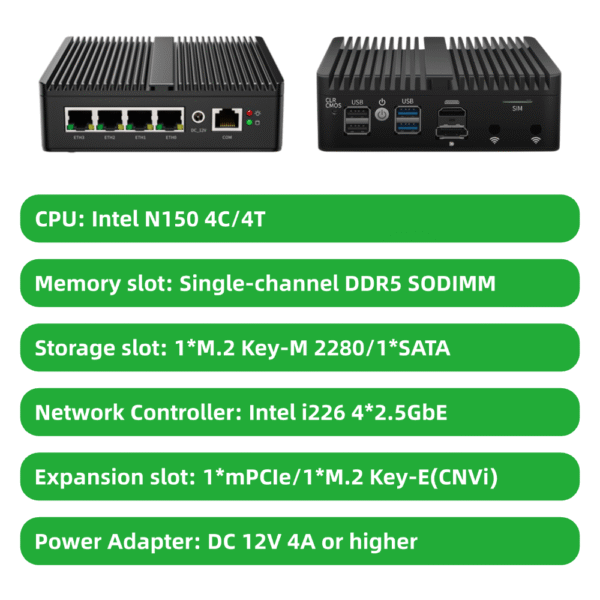

| Processor | Onboard | Intel N100/N150 | |
| Memory specifications | Memory type | DDR5 SO-DIMM | |
| Maximum capacity | 16GB | ||
| Maximum frequency | 4800 MT/s | ||
| Storage specifications | SATA | 1*SATA 3.0 (6Gb/s) | |
| M.2 | 1*M.2 Key-M 2280 | ||

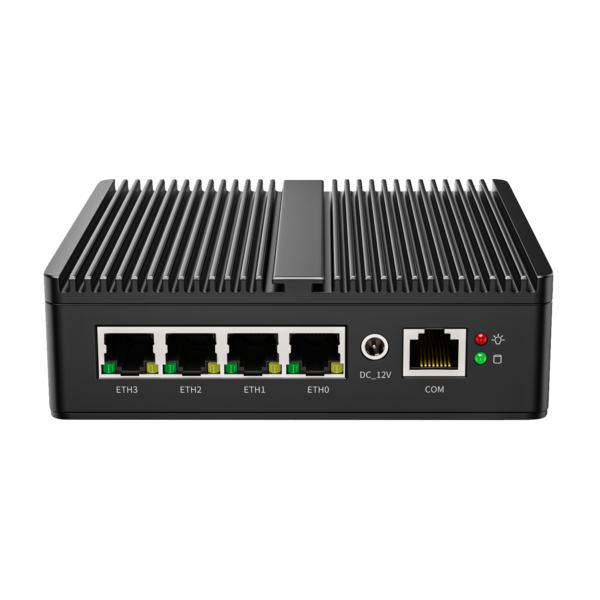

| Interface | Front Panel | Network | 4*RJ45 |
| Console | 1*RJ45 COM | ||
| Power | 1*Jack DC_IN | ||
| Back Panel | USB | 2*USB-A 3.0/2*USB-A 2.0 | |
| Display | 1*HD/1*DP | ||
| SIM | 1*SIM Card slot | ||
| Antenna hole | 2*Reserved | ||
| Extension interface | mPCIe | 1*mPCIe (PCIe/USB 2.0) | |
| M.2 | 1*M.2 Key-E 2230 (CNVi) | ||
| Cooling Method | Passive Cooling | Fanless (Need air flow) | |
| System Specifications | Chassis Size | 136*126*40 (mm) | |
| Equipment Weight | Equipment Weight 0.65 KG; Package Weight 1.25 KG (including accessories) | ||
| Power Mode | DC | 12V 4A or Higher | |
| Work Environment | Temperature | 0~50℃ | |
| Humidity | 5%~90% (Relative humidity, no condensation) | ||
