B760-6LAN-MB

$205.00

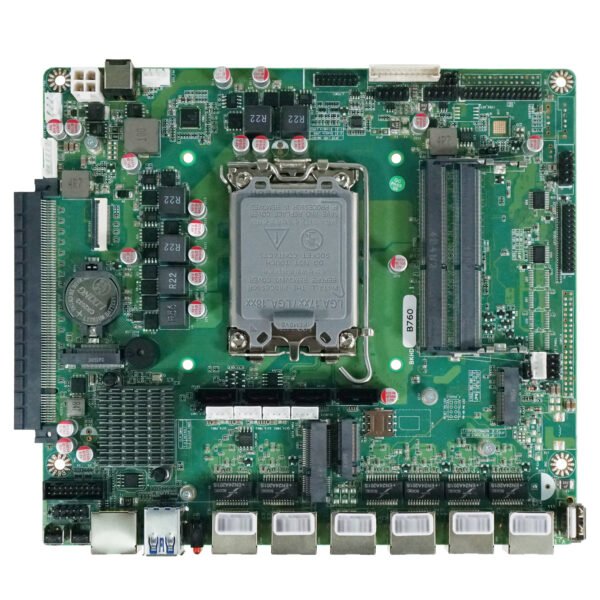

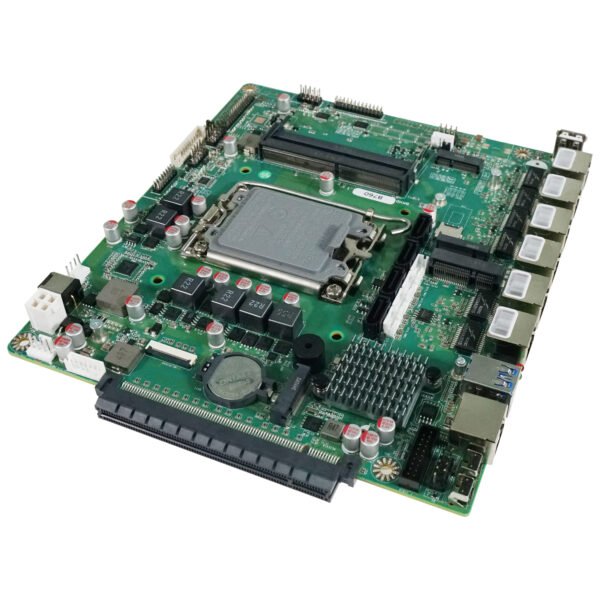

The B760-6LAN is a high-performance industrial motherboard based on the Intel B760 chipset. It is compatible with 12th/13th/14th generation Intel processors (LGA1700), supports dual-channel DDR4 SO-DIMM memory, and integrates 6x 2.5Gb Ethernet ports and multi-channel storage expansion interfaces. With abundant expansion slots, it is suitable for various application scenarios such as network security, virtualization gateways, industrial automation, IoT edge computing, and SD-WAN systems.

Main Features:
  • Powerful Computing Performance: Supports Intel 12th/13th/14th generation Core/Pentium/Celeron processors with LGA1700 socket, powered by the Intel B760 chipset, delivering efficient data channels and rich I/O control capabilities. Wide compatibility, compatible with various mainstream operating systems.
  • Powerful Network Architecture: Onboard 6 × Intel I226V controllers, providing six independent 2.5GbE RJ45 network interfaces. Supports Link Aggregation (LACP), VLANs, virtual bridges, bypass, and multi-WAN access. Meets the high-throughput requirements of firewalls, routers, load balancers, and security gateway systems.
  • Advanced Expansion Capabilities: Provides a PCIe 5.0 x16 high-speed expansion slot, offering ample bandwidth for future hardware. Can be expanded to PCIe x4 via FPC cable. Multiple M.2 expansion interfaces (Key-E + Key-B) are ready for wireless communication modules.
  • Extensive Industrial Expansion Interfaces: Provides 1 x mPCIe slot, supporting wireless modules or I/O expansion cards. Expandable to up to 6 COM ports, compatible with industrial automation equipment and control systems. Supports GPIO, I2C, TPM, LPT, and USB 2.0/3.0 expansion pins for flexible connection to peripheral devices.
  • Enterprise-Grade Power Supply and Reliability: Supports wide temperature and humidity operating ranges, adaptable to harsh industrial environments. Dual power supply design, compatible with ATX 4-pin or DC power interfaces, supports DC 19V/24V input. Provides comprehensive thermal solutions for stable long-term operation in harsh environments such as server rooms, industrial control sites, or edge nodes.

20 in stock

Categories: , Tags: , , , , , , Brand:
Network Security and Firewall

Utilize multiple high-speed Ethernet ports to build high-throughput firewalls, UTMs, IDS/IPS, VPNs, content filtering, and security auditing platforms.

Virtualization and Container Environment Nodes

Powerful performance and compatibility, supporting virtualization platforms such as Proxmox, ESXi, KVM, and Docker, enabling multi-service virtual deployment.

SD-WAN and Smart Routing

Suitable for building multi-WAN access gateways, supporting load balancing, link aggregation, and dynamic traffic optimization.

Edge Computing and AI Inference

Paired with PCIe accelerator cards for video analytics, intelligent recognition, and real-time data processing.

Industrial Network Protection and IoT Gateways

Achieve OT network isolation, data acquisition, protocol conversion, and edge intelligent control.

ProcessorProduct CollectionIntel® 12th/13th/14th Gen Processor
Sockets SupportedFCLGA1700
Memory specificationsMemory type2*DDR4 SO-DIMM
Maximum capacity2*32GB
Maximum frequency3200 MT/s
Storage specificationsSATA4*SATA 3.0
M.21*M.2 Key-M 2280 (PCIe Gen4 x4)
Network featuresEthernet6*2.5GbE
Controller6*Intel I226V
Extension interfacePCIe1*PCIe x16 (PCIe 5.0), 1*PCIe x4 (Via FPC Cables)
mPCIe1*mPCIe (USB 2.0 signal)
M.21*M.2 Key-E 2230 (USB/PCIe/CNVi), 1*M.2 Key-B 3052 (USB3.0 signal)
Display functionsPins1*J_VGA/1*J_HDMI
ChipDepends on the processor

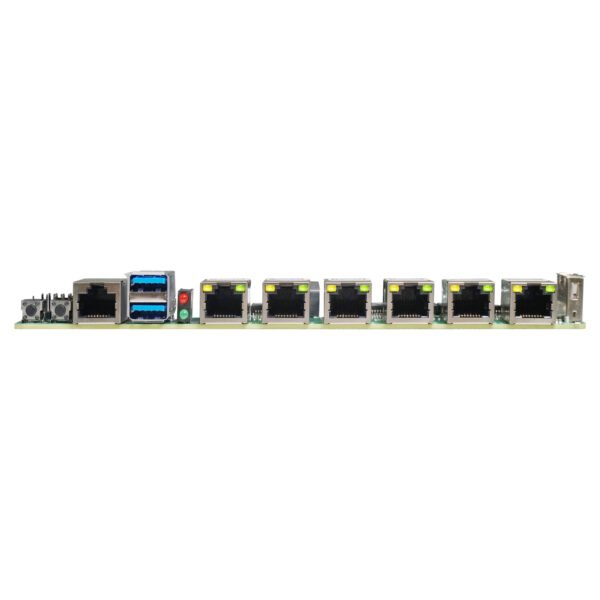

Backplane I/OUSB2*USB-A 3.2 (10Gb/s) Ports
Console1*RJ45 COM-RS232
Ethernet6*RJ45
Power supply1*Jack DC 5.5/2.5mm
Onboard I/OSATA4*SATA Data connector, 4*SATA Power socket
USB1*USB-A 2.0
Display1*J_VGA, 1*J_HDMI, 1*J_eDP or J_LVDS
SIM1*Nano SIM card solts
Fan1*CPU_FAN, 1*SYS_FAN
Pins1*F_PANEL
1*J_COM 2, 1*J_COM 3-6 (can expand 6x COM ports)
1*F_USB 3.0 (can expand 2x USB3.0 ports)
2*F_USB 2.0 (can expand 4x USB2.0 ports)
1*J_GPIO or J_LPT
1*J_I2C, 1*J_KB/MS
1*J_TPM
Power supply modeDC 19/24V, 1*ATX 4-pin Connector or 1*Jack DC 24V
Motherboard sizeSpecification180*200 (mm)
Work EnvironmentTemperature-20~60℃
Humidity0%~90% (Relative humidity, no condensation)

Data Sheet

Product Manual

Product Firmware
