Data Center and Storage Servers
Utilize dual SATA and dual M.2 NVMe interfaces to build NAS or RAID systems, supporting virtualization platforms such as VMware. Combined with Xeon processors for multi-tasking data processing, they are ideal for enterprise backup or cloud storage environments.
Network Security and Routing Devices
6x RJ45 ports support network aggregation and load balancing, and the PCIe expansion slot accommodates security cards. These devices are suitable for firewalls, VPN servers, or data center edge deployments, enabling high-bandwidth network management.
Industrial Automation and Monitoring Systems
Multiple COM and USB ports support sensor/device connectivity, while VGA and audio ports facilitate local monitoring. A wide-voltage power supply and industrial-grade environmental adaptability are ideal for factory or remote site automation control.
Development and Testing Platforms:
Rich I/O interfaces and PCIe slots facilitate custom expansion, making them ideal for server prototyping, software testing, or lab environments. The 1U rack-mount design facilitates standardized deployment.
| Processor | Product Collection | Intel Xeon Processor E5 v4 Family | |
| Sockets Supported | FCLGA2011-3 | ||
| Memory specifications | Memory Type | DDR4 DIMM | |
| Maximum Capacity | 64GB | ||
| Maximum Frequency | 2400 MT/s | ||
| Storage specifications | SATA | Up to 2*SATA 6Gb/s | |
| M.2 | 2*M.2 Key-M (NVMe) SSD | ||

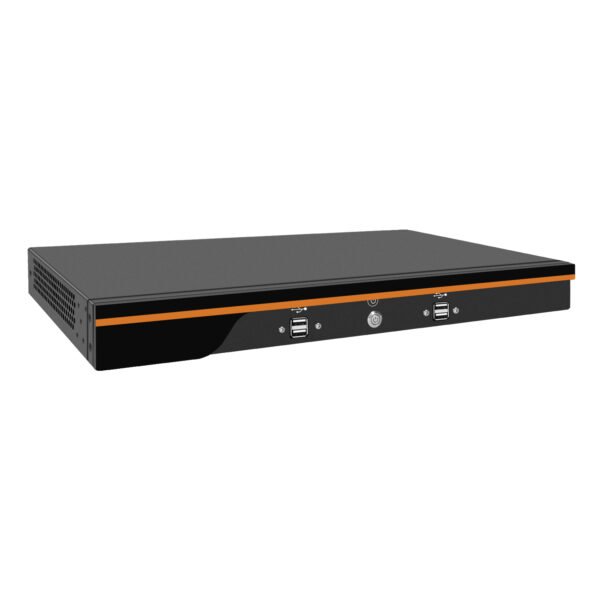

| Interface | Front Panel | USB | 4*USB-A 2.0 |
| Button | 1*Power Button | ||

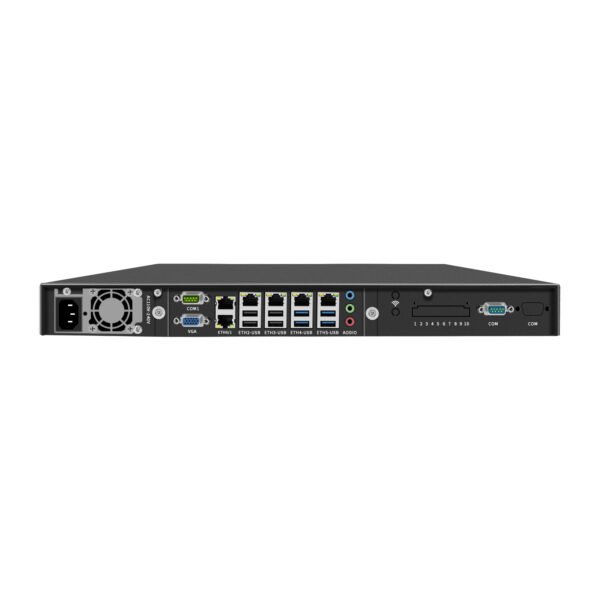

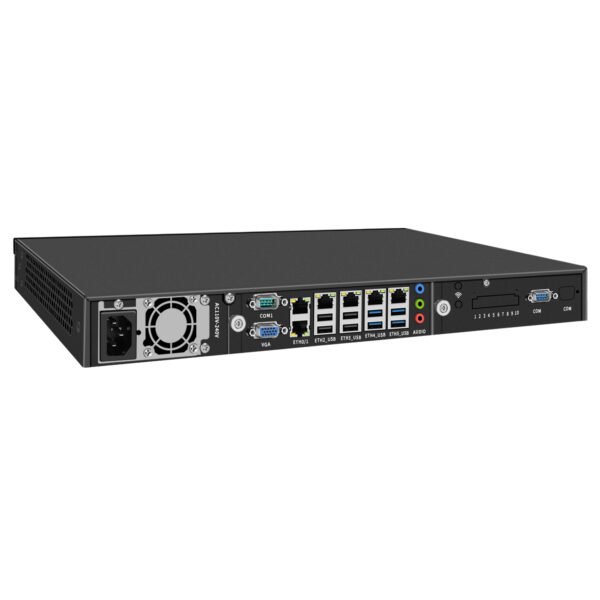

| Back Panel | COM | 1*DB9 COM | |
| Display | 1*VGA | ||
| Ethernet | 6*RJ45 | ||
| Audio | 3*Audio Jacks (Line-Out / MIC-In / Line-In) | ||
| USB | 4*USB-A 3.0, 4*USB-A 2.0 | ||
| Reserve | Up to 2*DB9 COM, 1*RS485 Phoenix terminal | ||
| Power | 1*AC Sockrt | ||
| Expansion slot | PCIe | 1*PCIe x16 | |
| Cooling Method | Active Cooling | Fan | 1*CPU Fan/2*Chassis Fan |
| System Specifications | Chassis Size | 440*257*45 (mm) | |
| Equipment Weight | Equipment Weight 3.80 KG; Package Weight 4.50 KG (including accessories) | ||
| Power Mode | Input: 90V~264V AC 50/60Hz Output: 400W MAX | ||
| Work Environment | Temperature | 0~50℃ | |
| Humidity | 5%~90% (Relative humidity, no condensation) | ||
