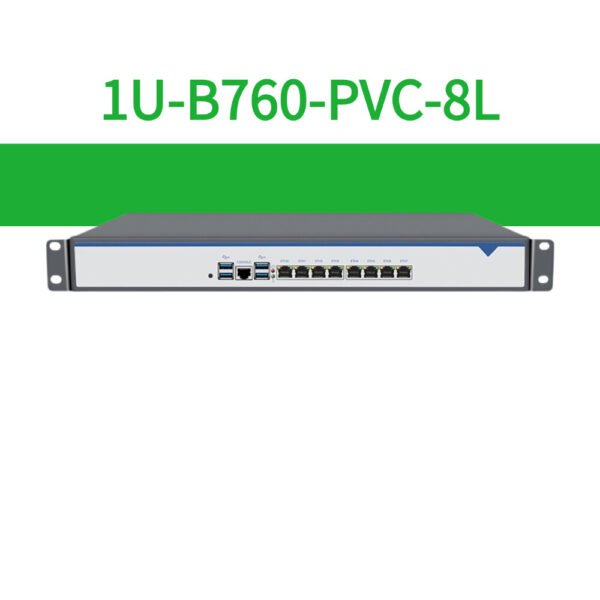

1U-B760-PVC-8L

1U-B760-PVC-8L is a 1U rack-mounted flagship industrial computer designed for core network edge, industrial hyper-convergence and high-density network aggregation. It integrates 8×2.5GbE electrical ports + optional optical network + PCIe full-size expansion and dual-channel DDR5 memory, providing a “density, performance, and reliability” three-in-one rack-level solution for edge computing, intelligent manufacturing and communication infrastructure.

Core highlights

Eight electrical ports + optical network fusion architecture: 8 2.5GbE network ports support port aggregation, VLAN multi-service isolation, copper cable access layer supports concurrent access of thousands of terminals, optical fiber aggregation layer, optional dual ports, four-port 10GbE SFP+ optical aggregation is suitable for 5G fronthaul/video backbone network.

New expansion interface era: PCIe x16 slot is compatible with the new generation of GPUs to deploy edge AI training, 100GbE network cards to achieve data center interconnection, and storage controllers to build U.2 NVMe expansion cabinets; PCIe x4 slots dedicated to optical networks can flexibly expand 2/4-port SFP+ modules (82599ES/X710 controllers), M.2 Key-B, mPCIe can add WiFi/4G/5G modules.

Industrial-grade reliable design: Three-fan design, processor fan + dual ball chassis fan to ensure continuous full load in high temperature environment. Dual power supply security, AC 110~220V is compatible with global power grids. Optional chassis upgrade dual power backup. Hardware-level protection, support watchdog automatic reset and millisecond-level power-off self-start.

Multi-level storage and deployment optimization: Dual M.2 SSD is suitable for virtual machine cache/log storage disk; 4×SATA 6Gb/s is suitable for building redundant data warehouses. Shallow cabinet depth adaptation, standard 1U rack-mount case, 285mm depth, easily deployed in shallow cabinets to improve space utilization.
