1493NP-12-4L-MB

Price range: $75.00 through $95.00

Specifications:

Model 1264NP-12-4L-MB
Processor Intel N150/Core i3-N300/N305
Chipset BKHD-1264NP-12-4L (FCBGA1264)
BIOS AMI EFI BIOS (UEFI boot only)
Memory Slot 1x DDR5 SO-DIMM Memory slot, Up to 16GB 4800MT/s
Storage Slot 1x M.2 Key-M 2280, 1x SATA 6Gb/s
Ethernet Ports 4x RJ45 2.5GbE (Adaptive)
Ethernet Controller 4x Intel I226-V
Expansion Slot 1x mPCIe, 1x M.2 Key-E 2230 (CNVi protocol)
Front Panel I/O 4x RJ45; 1x Jack DC 5.5/2.5mm; 1x RJ45 Console
Back Panel I/O 2x USB-A 2.0; 2x USB-A 3.2; 1x DP port; 1x HD port
Onboard Pins 1x F_USB1(10pin); 1x F_PANEL; 1x J_COM(10pin); 1x J_GPIO(10pin);1x CPU_FAN(4pin); 1x 7pin SATA; 1x SATA PWR; 1x Nano-SIM card slot
Display Chip Integrated Intel UHD Graphics
Other functions Start auto after power restored; Wake-up on LAN; PXE; Watchdog
Board Size 120*120 (mm) Nano-ITX
Power Supply DC 12V 4A or higher

SKU: N/A Category: Tags: , , , Brand:

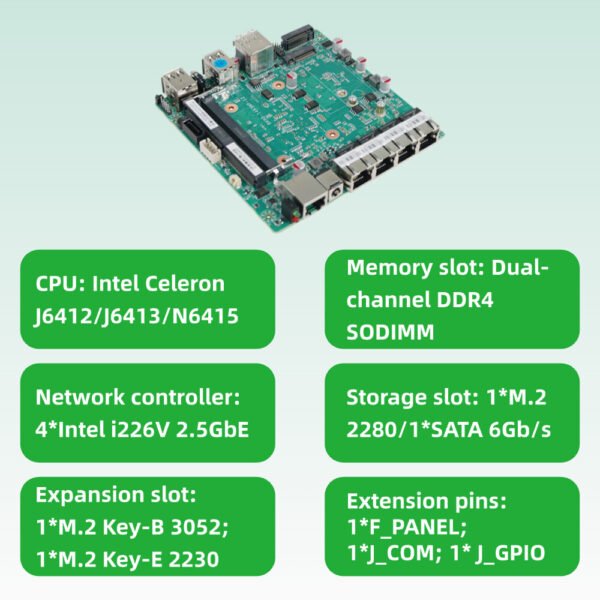

1493NP-12-4L-MB is a Nano-ITX motherboard designed for harsh industrial environments. Equipped with Intel Elkhart Lake Celeron/Pentium processors (N6415/J6412/J6426/J6413, etc.), it integrates 4×2.5GbE network ports, dual module expansion slots and full-stack industrial interfaces, and optimizes the space efficiency of edge gateways, mobile devices and industrial control with wide temperature operation capability and 12V DC power supply.

Core highlights

Extreme space utilization: Nano-ITX specifications are smaller than traditional Mini-ITX sizes and can be embedded in applications such as robotic arm control boxes, internal compartments of medical equipment, and smart meter concentrators.

Multi-interface industrial interconnection: 4 2.5GbE network ports support LACP aggregation and VLAN isolation of OT network and IT management system; onboard industrial control pin 10pin GPIO can be used to connect sensors/emergency stop switches, COM serial port RS-232/485 can be connected to PLC/SCADA equipment, and RJ45 console supports headless on-site debugging.

Industrial reliable design: Supports hardware watchdog, power-off automatic restart, ensures business continuity, and reserves 4-pin fan interface (compatible with fanless cooling solution) to support PWM precise temperature control.

Weight 0.50 kg
Dimensions 20 × 20 × 10 cm
Integrated Processor

Celeron J6412, Celeron J6413, Celeron N6415, Celeron J6426
