1338-NAS-17-MB

Price range: $109.99 through $209.99

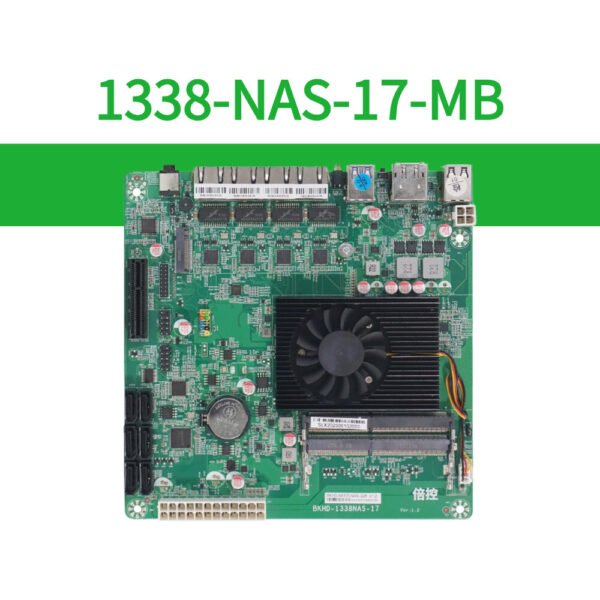

1338-NAS-17-MB is an industrial motherboard designed for storage and light edge computing for small and medium-sized enterprises. Equipped with Intel Celeron N5105 quad-core low-power processor, it integrates 4× 2.5GbE network ports and 6× SATA expansion capabilities, providing high-density, low-power solutions for NAS private cloud, security storage and virtualization platforms.

Specifications:

Model 1338-NAS-17-MB
Processor Intel N5105
Chipset BKHD-1338-NAS-17-MB (FCBGA1338)
BIOS AMI EFI BIOS (UEFI boot only)
Memory Slot 2x DDR4 SO-DIMM, Up to 16GB 2933MT/s
Storage Slot 1x M.2 Key-M 2280 SSD/6x SATA 6Gb/s
SATA Controller JMB585 (PCIe x2 to 6x SATA)
Ethernet Ports 4x RJ45 2.5GbE(Adaptive)
Ethernet Controller 4x Intel I226-V
Expansion Slot 1x PCIe x4 (x2 rate)
Panel I/O 2x USB-A 3.2; 2x USB-A 2.0; 1x DP port; 1x HD port; 4x RJ45; 1x 3.5mm Jack Audio
Onboard I/O 24pin ATX+4pin ATX; 6x 7pin SATA 6Gb/s
Onboard Pins 1x F_USB1(10pin); 1x F_PANEL; 1x J_COM(10pin); 1x CPU_FAN(4pin); 1x JLAN_LED(16pin)
Display Chip Integrated Intel UHD Graphics
Other functions Start auto after power restored; Wake-up on LAN; PXE; Watchdog
Board Size 170*170 (mm) m-ITX
Power Supply ATX 24pin+4pin

SKU: N/A Category: Tags: , , , , Brand:

Core highlights

Aggregated network architecture: 4x 2.5Gb adaptive Ethernet ports, support link aggregation, VLAN isolation backup network and storage traffic, and PXE/WoL functions to achieve unattended operation and maintenance.

Storage performance breakthrough: M.2 SSD interface supports high-speed data reading and writing, and can be configured as cache or system disk to accelerate virtual machine/database response. 6x SATA interfaces, connect mechanical disk/SSD, and build a 96TB (16TB×6) massive data storage pool.

Flexible installation design: standard Mini-ITX size, flexible and compatible with a variety of chassis to cope with different installation environments. The 24+4pin ATX power interface is compatible with different power supplies and supports full load of all disk slots.

Upgraded expansion capability: PCIe 3.0×4 slots can expand 10G network cards (breaking network bottlenecks), HBA controllers (adding SATA ports), and GPU accelerator cards (lightweight AI reasoning).

Weight 0.65 kg
Dimensions 26 × 26 × 8 cm
Integrated Processor

Intel Celeron N5105
Bundles

Motherboard only, 8GB RAM 128GB SSD, 8GB RAM 256GB SSD, 16GB RAM 256GB SSD, 16GB RAM 512GB SSD
