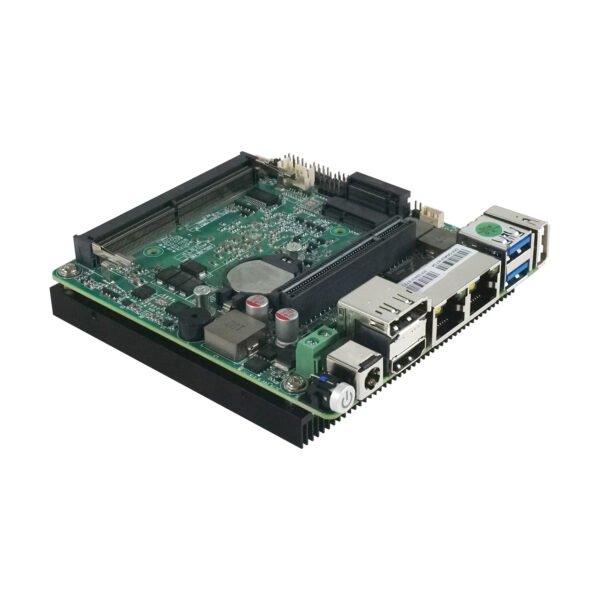

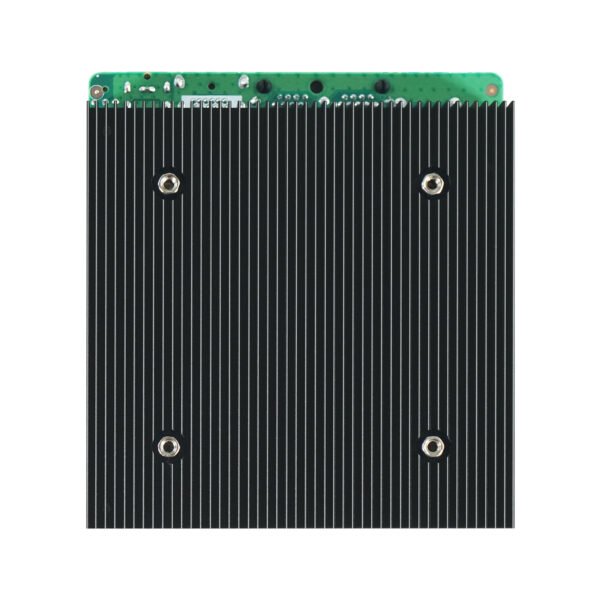

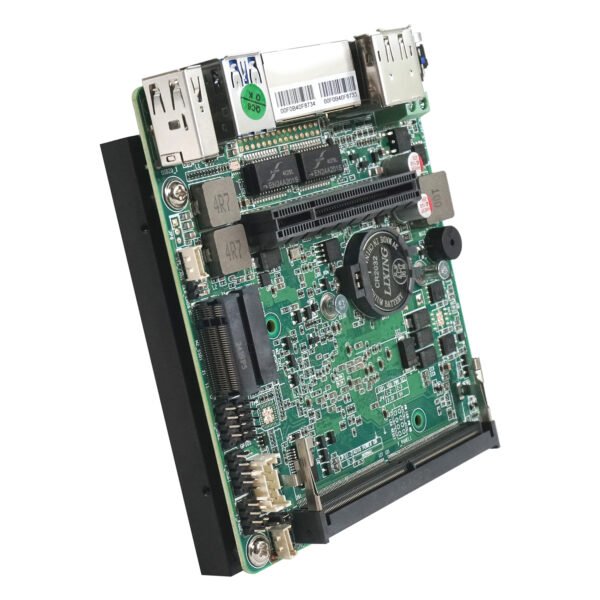

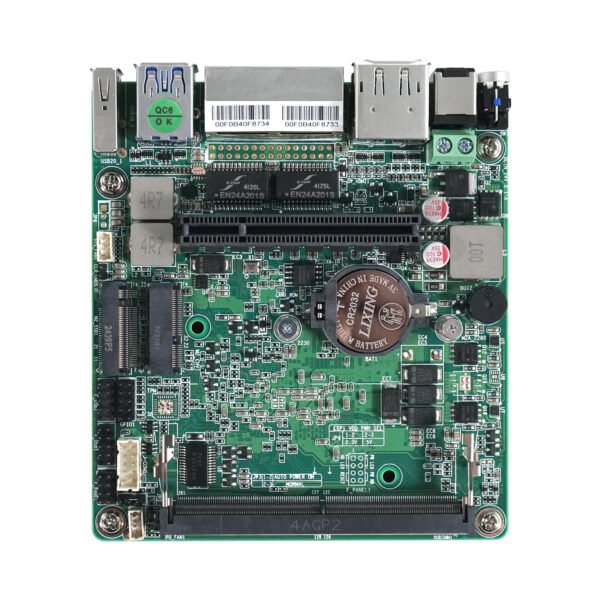

1264-10-2L-MB is a card-sized industrial development board (110×100mm) designed for high-density embedding and customized storage. Equipped with Intel N100 processor, it supports three expansion modes through the exclusive PCIe x6 non-standard interface. Combined with wide voltage input and wide temperature operation, it provides a hardware innovation platform of “centimeter-level body and full-scene expansion” for edge storage, machine vision and mobile devices.

Specifications:

Model 1264-10-2L-MB
Processor Intel N100
Chipset BKHD-1264-10-2L-MB (FCBGA1264)
BIOS AMI BIOS (UEFI boot only)
Memory Slot 1x DDR5 SO-DIMM, Up to 16GB 4800MT/s
Storage Slot 1x M.2 Key-M (PCIe/SATA) SSD
Ethernet Ports 2x RJ45 2.5GbE (Adaptive)
Ethernet Controller Intel I226V
Expansion Slot 1x PCIe x6 (Non-standard definition); 1x M.2 Key-E 2230 (CNVi Signal)

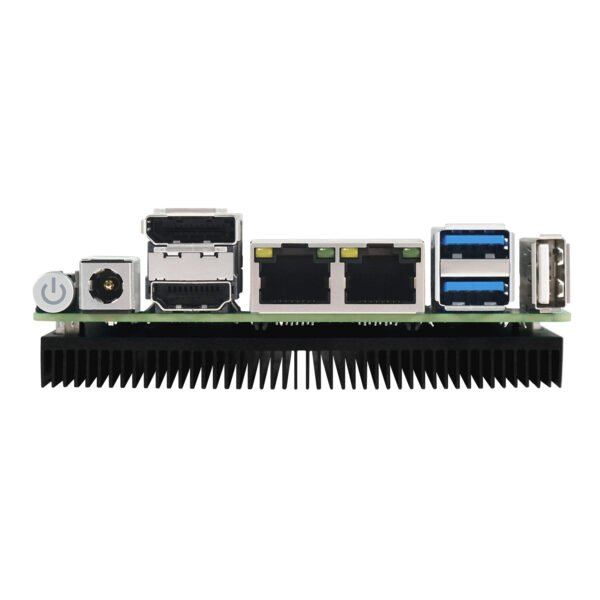

Onboard Panel I/O 1x USB-A 2.0; 2x USB-A 3.2; 2x RJ45; 1x DP port; 1x HD port; 1x Jack DC 5.5/2.5mm
Onboard Pins 1xF_Panel; 2x CPU/SYS_FAN (4pin); 1x J_GPIO (10pin); 2x F_USB2.0 (10pin); 1x J_TPM2.0; 1x J_COM RS232 (10pin); 1x eDP (optional)
Display Chip Integrated Intel UHD Graphics
Other functions Start auto after power restored; Wake-up on LAN; PXE; Watchdog

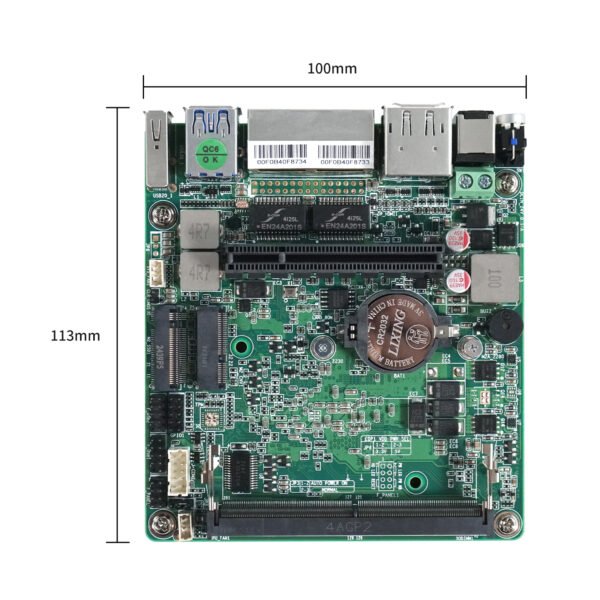

Board Size 110*100 (mm)
Power Supply DC 12V~24V

SKU: N/A Category: Tags: , , Brand:

Core highlights

3-mode expansion solution:

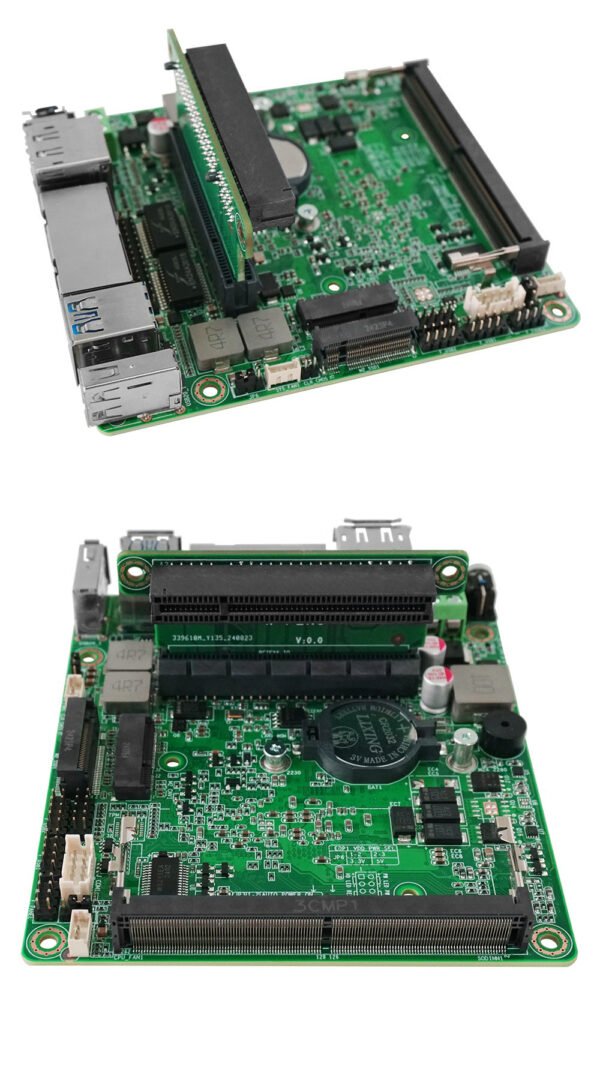

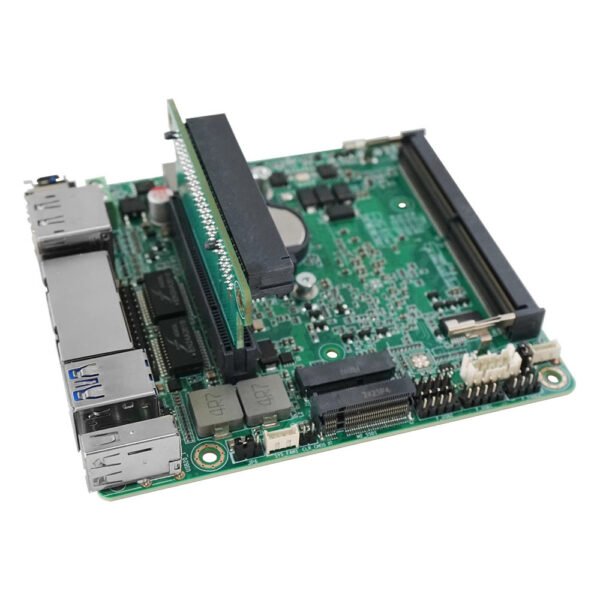

Standard device expansion mode (90° turn card), converted to PCIe x4 interface, can connect full-height/half-height devices such as 10G network card and AI acceleration card. Typical applications, vehicle-mounted equipment: expansion of 4G/5G communication module (field operation), machine vision: access to industrial camera acquisition card.

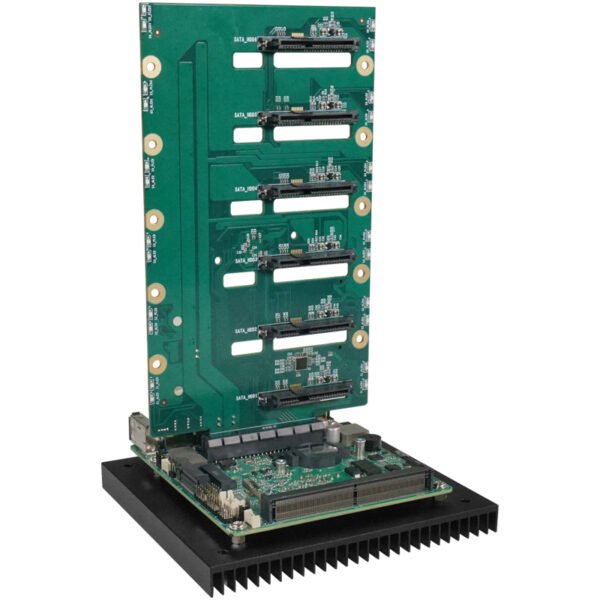

Hybrid storage mode (SATA split card), with the help of PCIe splitting, provides 2x M.2 SSD (PCIe x2) ASM1168 chip converted to 6x SATA, can be adapted to micro NAS: 6-slot storage pool + dual NVMe read and write cache; video archiving: SATA storage historical video + NVMe real-time analysis.

All-flash extreme storage mode (all-flash card), split into 6× PCIe x1 channels, can support 6×M.2 NVMe SSD direct connection, support software RAID 0/10 (extreme IOPS performance). Used for edge databases and high-speed cache training data sets.

Industrial-grade full-stack interface: dual 2.5GbE network ports, support link aggregation; three display outputs, DP+HD 4K@60Hz + eDP connected to embedded screen (extra purchase); control interface, GPIO connected to sensor control, RS232 and PLC docking.

Weight 1.5 kg
Dimensions 25 × 20 × 15 cm
Packages

MB+PCIe steering, MB+SATA Board, MB+M.2 Board
Bundles

NO RAM NO SSD, 8GB RAM 128GB SSD, 8GB RAM 256GB SSD, 8GB RAM 512GB SSD, 16GB RAM 256GB SSD, 16GB RAM 512GB SSD, 16GB RAM 1TB SSD
